Description

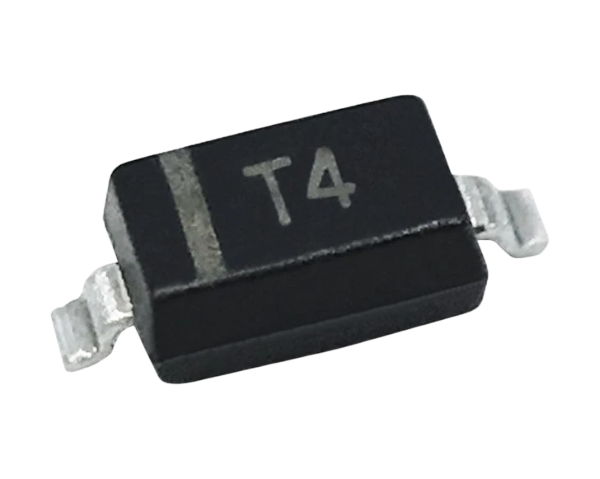

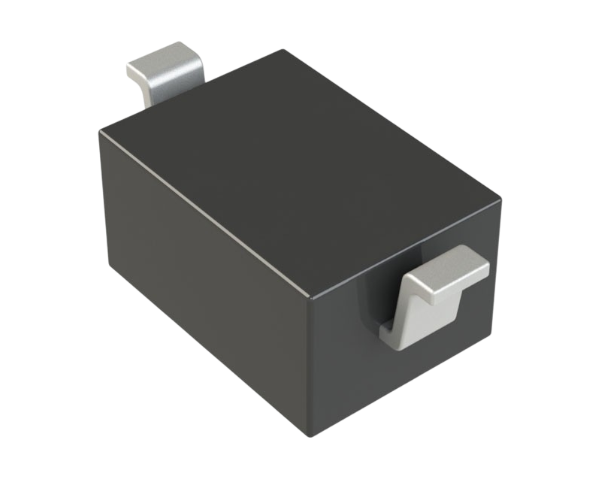

The GBLCxxCI Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available bidirectional configurations and is rated at 350 Watts for an 8/20μs waveshape. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major concern. This series offers a ultra low capacitance and low leakage current in a miniature SOD-323 package.
Product Attributes
| Product Attribute | Attribute Value |
| Category | Circuit Protection/ESD and Surge Protection (TVS/ESD) |
| Manufacturer | ElecSuper |
| Package | SOD-323 |
| Peak Pulse Current (Ipp) | 10A |
| Reverse Leakage Current (Ir) | 1uA |
| Peak Pulse Power Dissipation (Ppp) | 200W |
| Maximum Clamping Voltage | 20V |
| Breakdown Voltage | 3.8V |
| Number of Lines | Single channel |
| polarity | Bidirectional |
| Reverse Stand-Off Voltage (Vrwm) | 3V |
| Type | ESD |
Applications
- Interfaces
– USB 2.0/1.1
– GPIO
– Ethernet 10/100/1000 Mbps
– Audio - End Equipment
– Industrial and Serve Robots
– Laptops and Desktops
– TV and Monitors
– Wearables
Package Includes
- 1 x ESD and Surge Protection GBLC03CI-ES
