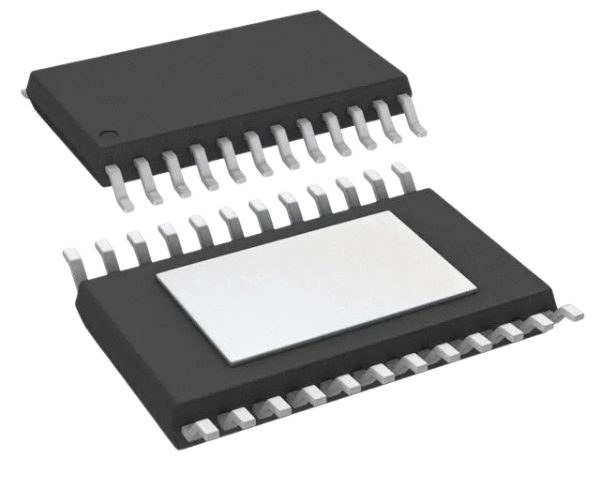

IC MOTOR DRIVER 8V-28V 24HTSSOP (EU Version)
10 in stock (can be backordered)
Delivery & Return Rules
Same-Day Delivery for ISB/RWP
Policy: Orders placed before 3:00 PM for delivery within Islamabad/Rawalpindi will be delivered the same day. Orders placed after this time will be delivered the next business day.
Quick Returns
Explanation: We aim for a smooth return experience.
Policy: Returned items will be processed within 3–5 business days of receiving the item, and you will be notified once the return is approved.
Exchange for Misquoted Items
Explanation: We take full responsibility for product listing accuracy.
Policy: If the item you received is significantly different from its description or image, you can request an exchange.
Wrong or Damaged Products
Explanation: We ensure product quality and accurate shipping.
Policy: If you receive an incorrect product or one that is damaged during shipment, you are eligible for a free exchange.
Complete Package Assurance
Explanation: Your order should arrive complete and in perfect form.
Policy: If any accessory, component, or part is missing from the package, we will ship the missing parts after confirmation.
Video Proof of the Items
Explanation: Helps verify the condition of the product upon delivery.
Policy: An unboxing video is mandatory at the time of opening the package. The video must clearly show the sealed package being opened, the product, and all included components. This is required for any claims related to:
- Missing items
- Damaged products
- Wrong deliveries
Without this video proof, we will not be able to process returns or exchanges.
No Warranty for Electronic Products
Explanation: Most electronic items are sold as-is and cannot be returned once used.
Policy: Electronic products are not covered under warranty. We recommend testing the item as soon as you receive it. Exchanges are only allowed if the product is damaged on arrival or incorrectly delivered.
Return Request Timing
Explanation: We operate within a strict return window.
Policy: All return/exchange requests must be submitted within 10 days (local orders) and 20 days (bulk orders) from the invoice date.
Online Return Requests Only
Explanation: Streamlined and trackable process.
Policy: All return and exchange requests must be raised through our official website.
Proof of Purchase Required
Explanation: Ensures authenticity of your claim.
Policy: A copy of your invoice or order confirmation is required for any return, exchange, or or claim.
Order Cancellation Policy
Policy: Only those orders that are still in processing or have not yet been shipped are eligible for cancellation.
Explanation: Once an order has been shipped, it cannot be canceled under any circumstances. If your order is still in the processing stage or has not yet been dispatched, you may request a cancellation.
TECHNICAL DOCUMENTATION FILES
Description
The Motor Driver IC 8V–28V in the 24HTSSOP package is a compact and efficient solution for driving DC motors, stepper motors, and small mechatronic systems. It delivers stable current control and wide voltage support, making it ideal for robotics, automation, and embedded electronics. Its compact 24HTSSOP package ensures easy integration into space-constrained designs.
This motor driver IC supports an operating voltage range of 8 to 28 volts. As a result, it is compatible with a variety of motors used in hobby projects, industrial devices, and battery-powered systems. The Motor Driver IC 8V–28V also provides strong output current capability, enabling smooth motor operation even under variable loads.
The IC includes built-in protections such as thermal shutdown, overcurrent protection, and undervoltage lockout. Therefore, the Motor Driver IC 8V–28V increases circuit reliability and reduces the risk of damage during long-term operation. Its integrated MOSFET drivers ensure efficient power delivery with minimal heat generation.
Connectivity is simple and developer-friendly. The driver supports PWM speed control, direction control, and current regulation. Engineers can interface it with microcontrollers like Arduino, STM32, ESP32, and Raspberry Pi. Additionally, its 24HTSSOP surface-mount package makes it suitable for high-density PCBs and modern compact hardware designs.
This motor driver is widely used in 3D printers, CNC machines, smart appliances, robotic cars, and automated mechanisms. Moreover, it delivers smooth motor starts, accurate speed control, and consistent torque across the entire voltage range. These capabilities make it an excellent choice for both consumer electronics and industrial-grade applications.
Overall, it is a reliable, high-performance, and versatile component for motor control. Its efficiency, wide voltage support, and built-in protections make it essential for modern robotics, automation, and motion-control projects.
Features
• Input Voltage Range: 8 to 28 V
• Total Driver H + L rDS(on): 250 mΩ
• Drive Current: 2-A Continuous Winding Current (3-A Peak)
• Sensorless Proprietary Back Electromotive Force (BEMF) Control Scheme
• Continuous Sinusoidal 180° Commutation
• No External Sense Resistor Required
• For Flexibility User May Include External Sense
Resistor to Monitor Power Delivered to Motor
• Flexible User Interface Options: – I
Interface: Access Registers for Command and Feedback
– Dedicated SPEED Pin: Accepts Either Analog or PWM Input
– Dedicated FG Pin: Provides TACH Feedback
– Spin-Up Profile Customizable With EEPROM
– Forward-Reverse Control With DIR Pin
• Integrated Step-Down Regulator to EfficientlyProvide Voltage (5 V or 3.3 V) for Internal and External Circuits
• Supply Current 3 mA With Standby Version (DRV10983)
• Supply Current 180 μA With Sleep Version (DRV10983Z)
Novelty:
• Overcurrent Protection
• Lock Detection
• Voltage Surge Protection
• UVLO Protection
• Thermal Shutdown Protection
• Thermally-Enhanced 24-Pin HTSSOP
Applications
• Appliance Fan
• HVAC
| Weight | 1 g |
|---|---|
| Manufacturer | Texas Instruments |
| Product Number | 296-38448-2-ND |
Reviews
There are no reviews yet
