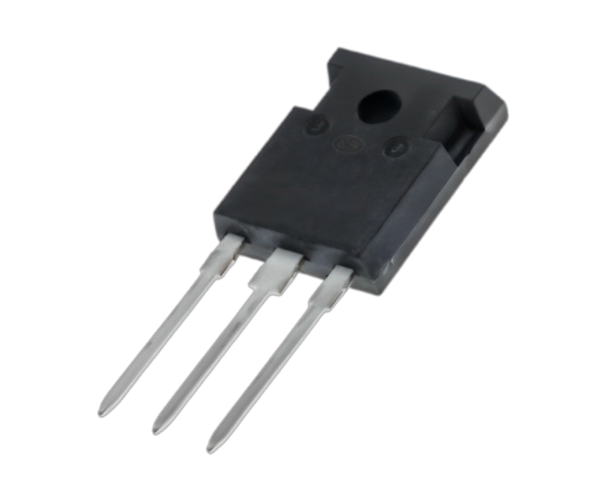

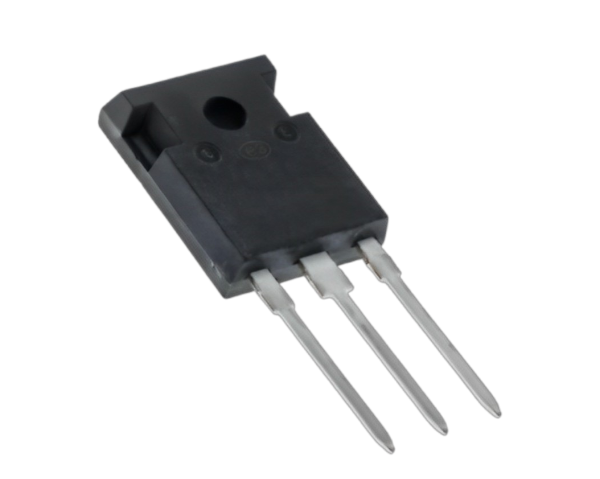

IXYS P-Channel Standard MOSFET
The IXYS P-Channel Standard MOSFET is designed for efficient power switching and management in modern electronic circuits. Known for its low on-resistance and fast switching speed, this MOSFET ensures minimal power loss and high performance in applications like DC-DC converters, power supplies, and motor controllers.
At Burk.pk, it is popular among engineers for its reliability and robustness. Its high current handling capability makes it suitable for demanding applications where efficiency and thermal management are crucial. Whether you are designing automotive electronics or industrial equipment, this MOSFET offers excellent control and power efficiency.
One of the main advantages is its low gate charge, which reduces switching losses and increases overall system efficiency. Additionally, its rugged construction ensures long-lasting performance even under harsh electrical conditions.
Moreover, this MOSFET supports easy integration into various circuits thanks to its standard pin configuration. It also provides excellent thermal stability, allowing devices to operate reliably in a wide temperature range.
Installation is simple and straightforward, compatible with most PCB layouts and driver circuits. It works well in both high-side and low-side switching applications.
This transistor turns on when the gate voltage is lower than the source, which is the opposite of an N-Channel MOSFET. That makes it ideal for switching the positive side of a circuit. Moreover, it simplifies power distribution where high-side control is required.
Because of its low on-resistance, the P-Channel MOSFET reduces heat and power loss during operation. Therefore, it’s great for energy-efficient designs. You can pair it with microcontrollers, analog systems, or even relays for smooth load control.
It supports high drain-source voltages and steady current flow. In addition, it comes in TO-220 or SMD packages, making it easy to use in both prototyping and final production.
Uses
Use this P-Channel Standard MOSFET in circuits where you want simple control of LEDs, motors, or other loads connected to the power rail. It works well in automotive, solar, and consumer electronics too.
Furthermore, it switches quickly and offers reliable operation even in harsh conditions. Its durability makes it suitable for both industrial and DIY use.
In summary, the IXYS P-Channel High-Performance MOSFET from Burk.pk combines power, speed, and durability. It is the ideal choice for engineers and designers looking for efficient power management solutions.
Features
- Fast intrinsic diode
- Low Qg and RDSon
- Avalanche rated
- Extended FBSOA
- International standard packages
Specifications
| Property | Value |
|---|---|
|
VDSSÂ (V)
|
-100
|
|
RDS(ON),max @ 25 °C (Ω)
|
0.0075
|
|
ID, cont @ 25 °C (A)
|
-210
|
|
Gate Charge (nC)
|
740
|
|
RthJCÂ (K/W)
|
0.12
|
|
Configuration
|
Single
|
|
Package Type
|
TO-247 PLUS
|
|
CISSÂ (pF)
|
69500
|
|
PDÂ (W)
|
1040
|
|
trr,max (ns)
|
200
|
Package Includes
- 1 x IXYS P-Channel: Standard MOSFET
| Weight | 7 g |
|---|---|
| Manufacturer | IXYS |
| Product Number | 747-IXTX210P10T |
