  • Nema 14 Bipolar Stepper Motor 1.8° 90mN-m 1.68A

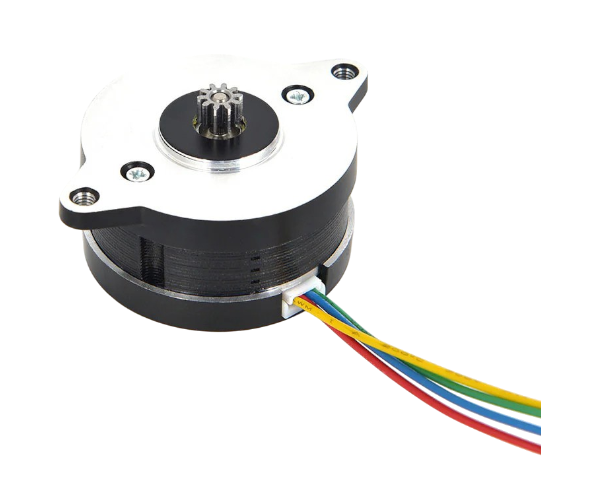

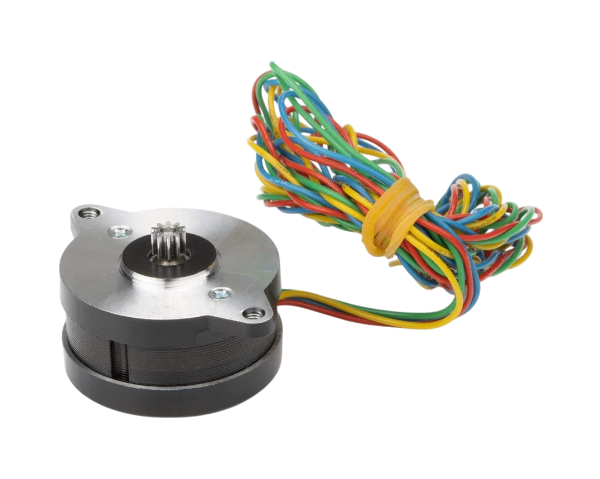

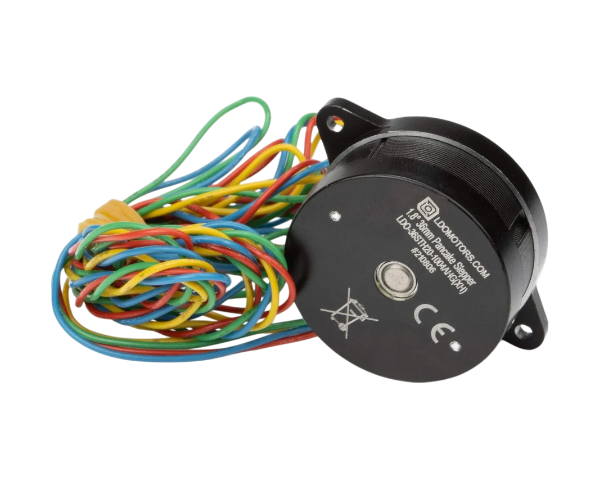

Nema 14 Bipolar Stepper Motor 1.8° 90mN-m 1.68A

USD
PKR
  • Step Angle: 1.8° ±5%
  • Rated Voltage: DC 2.8V / Phase
  • Rated Current: DC 1.68A / Phase
  • Weight : 85g

Flash Sale end in:

00
:
00
:
00
:
00
$17.39

4 in stock (can be backordered)

Add to Wishlist
Compare
Contact For Bulk Orders
  Delivery & Return

Delivery & Return Rules

Same-Day Delivery for ISB/RWP

Policy: Orders placed before 3:00 PM for delivery within Islamabad/Rawalpindi will be delivered the same day. Orders placed after this time will be delivered the next business day.

Quick Returns

Explanation: We aim for a smooth return experience.

Policy: Returned items will be processed within 3–5 business days of receiving the item, and you will be notified once the return is approved.

Exchange for Misquoted Items

Explanation: We take full responsibility for product listing accuracy.
Policy: If the item you received is significantly different from its description or image, you can request an exchange.

Wrong or Damaged Products

Explanation: We ensure product quality and accurate shipping.
Policy: If you receive an incorrect product or one that is damaged during shipment, you are eligible for a free exchange.

Complete Package Assurance

Explanation: Your order should arrive complete and in perfect form.
Policy: If any accessory, component, or part is missing from the package, we will ship the missing parts after confirmation.

Video Proof of the Items

Explanation: Helps verify the condition of the product upon delivery.
Policy:  An unboxing video is mandatory at the time of opening the package. The video must clearly show the sealed package being opened, the product, and all included components. This is required for any claims related to:

  • Missing items
  • Damaged products
  • Wrong deliveries

Without this video proof, we will not be able to process returns or exchanges.

No Warranty for Electronic Products

Explanation: Most electronic items are sold as-is and cannot be returned once used.
Policy: Electronic products are not covered under warranty. We recommend testing the item as soon as you receive it. Exchanges are only allowed if the product is damaged on arrival or incorrectly delivered.

Return Request Timing

Explanation: We operate within a strict return window.
Policy: All return/exchange requests must be submitted within 10 days (local orders) and 20 days (bulk orders) from the invoice date.

Online Return Requests Only

Explanation: Streamlined and trackable process.
Policy: All return and exchange requests must be raised through our official website.

Proof of Purchase Required

Explanation: Ensures authenticity of your claim.
Policy: A copy of your invoice or order confirmation is required for any return, exchange, or or claim.

Order Cancellation Policy

Policy: Only those orders that are still in processing or have not yet been shipped are eligible for cancellation.

Explanation: Once an order has been shipped, it cannot be canceled under any circumstances. If your order is still in the processing stage or has not yet been dispatched, you may request a cancellation.

  2 - 5 DAY DELIVERY  Jan 01 Jan 05
SKU: 1000000000001
Category:Stepper Motors
Tags:36STH20 motor, LDO, LDO MOTOR, LDO-36STH20, LDO-36STH20-1004 AHG, motor, Stepper Motor
Share:
Guaranteed safe & secure checkout

TECHNICAL DOCUMENTATION FILES

DOWNLOAD
  • Download All
  • DataSheet
  • 3D Model
Description
Additional information
Reviews (0)

This high-performance stepper motor is a 2-phase unit with a step angle of 1.8° ± 5%. It offers precise control, strong holding torque (90mN·m), and is suitable for high-temperature environments (Class H). Ideal for applications requiring accurate motion control, such as Voron 3d printers.

Stepper Motor Specifications

  • Step Angle: 1.8° ±5%
  • Rated Voltage: DC 2.8V / Phase
  • Rated Current: DC 1.68A / Phase
  • Phase Resistance: 1.65x(1±20%) Ω
  • Phase Inductance: 3.6x(1±20%) mH
  • Holding Torque: 4.5 Kgf-cm(0.45Nm) MIN
  • Detent Torque: 20 mN-m REF.
  • Rotation Direction: ACBDA CW
  • Insulation Resistance: 100Mohm (DC500V)
  • HI-POT: AC600V/1mA/15
  • Insulation Class: Class B 130°C
  • Rotor Inertia: 53 g-cm² REF

Package Includes

  • 1 x LDO Nema 14 Bipolar 1.8° 90mN-m 1.68A
Weight 140 g
Dimensions 36 × 36 × 20 mm
Manufacturer

China

Model

LDO-36STH20-1004 AHG
