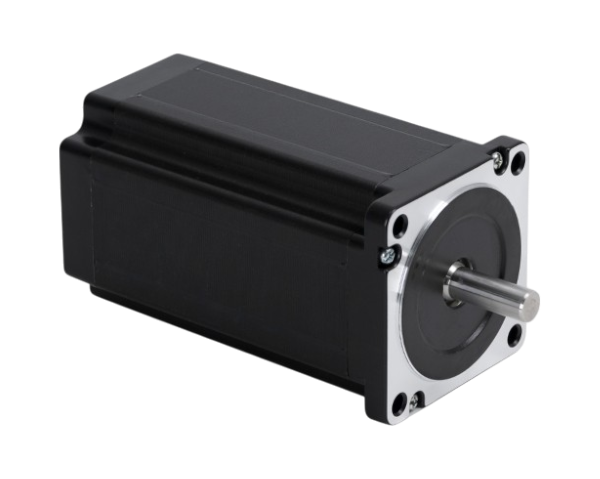

The LDO Motors 34 Bipolar Stepper Motor is a high-performance motor designed for heavy-duty motion control applications. With a step angle of 1.8 degrees, a holding torque of 12.2Nm (122kgf.cm), and a current rating of 6.2A, this motor delivers powerful and precise motion control for demanding systems.
At Burk.pk, this NEMA 34 stepper Ldo motors is ideal for CNC machines, 3D printers, industrial automation systems, and robotic platforms that require high torque and accurate positioning. The bipolar configuration ensures smoother operation and better torque handling compared to unipolar motors, making it perfect for high-precision linear and rotary motion.
The motor features robust construction with high-quality bearings and shaft alignment, ensuring durability even under high loads and continuous operation. With its large frame size, it provides stability and minimizes vibration during performance, leading to smoother system behavior and extended machine life.
Thanks to its 1.8° step angle, this LDO stepper motor achieves 200 steps per revolution, offering excellent resolution for applications requiring fine control. It pairs well with high-voltage stepper drivers and microstepping controllers, allowing for even greater precision and responsiveness.
Wiring and integration are made simple with four leads for bipolar connection. It supports various driver configurations, including digital stepper drivers, hybrid servo drivers, and advanced motion control boards.
In summary, the LDO NEMA 34 Bipolar Stepper Motor from Burk.pk is engineered for power, performance, and precision. Whether you’re upgrading a CNC machine or building a new industrial motion system, this stepper motor offers the torque and accuracy needed for professional results.
Stepper Motor Specifications
- Phase Number: 2
- phases Step Angle: 1.8° ± 5%
- Rated Voltage: DC 3.5 VDC
- Rated Current: DC 6.2 A / Phase
- Resistance (20°C): 0.75 ± 10% Ω / phase
- Inductance: 9.0 ± 20% MH / Phase
- Holding Torque: ≥ 122 Kg-cm
- Detent Torque: 3.6 Kg-cm REF.
- Rotation Direction: ACBDA CW
- MAX Starting PPS: ≥ 1500 PPS
- MAX Slewing PPS: ≥ 2500 PPS
- Insulation Resistance: ≥ 100MΩ (DC 500V)
- HI-POT: AC600V/1mA/1S
- Insulation Class: Class B Rotor
- Inertia: 4000 g. cm²
Package Includes
- 1 x LDO Nema 34 Bipolar 1.8° 122Kgf-cm (12.2N-m) 6.2A
| Weight | 5500 g |
|---|---|
| Dimensions | 86 × 86 × 156 mm |
| Model | LDO-86STH156-6204 AC |
| Manufacturer | China |
| Angle | 1.8° |
| Torque | 12.2Nm, 8.7Nm, 4.6Nm |
