  • NOR Flash 8M (1Mx8) 50MHz Commercial Temp

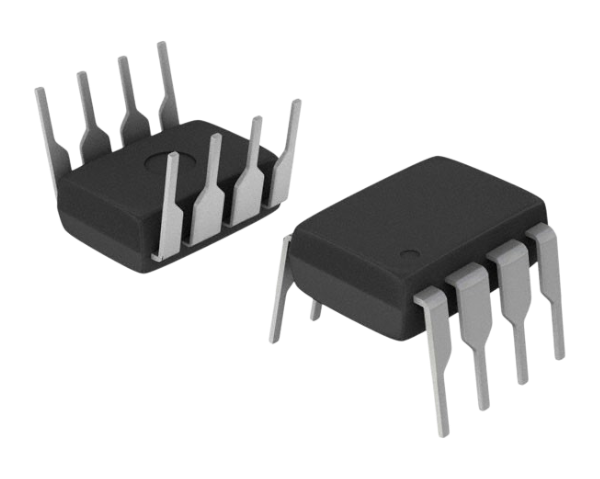

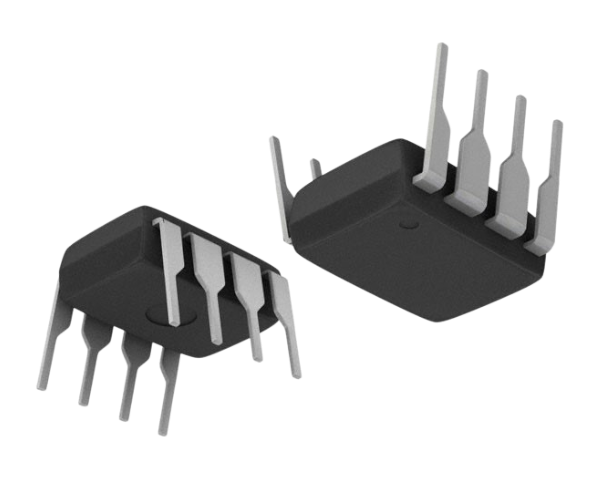

NOR Flash 8M (1Mx8) 50MHz Commercial Temp

USD
PKR

Flash Sale end in:

00
:
00
:
00
:
00
₨1,055

30 in stock (can be backordered)

Add to Wishlist
Contact For Bulk Orders
  Delivery & Return

Delivery & Return Rules

Same-Day Delivery for ISB/RWP

Policy: Orders placed before 3:00 PM for delivery within Islamabad/Rawalpindi will be delivered the same day. Orders placed after this time will be delivered the next business day.

Quick Returns

Explanation: We aim for a smooth return experience.

Policy: Returned items will be processed within 3–5 business days of receiving the item, and you will be notified once the return is approved.

Exchange for Misquoted Items

Explanation: We take full responsibility for product listing accuracy.
Policy: If the item you received is significantly different from its description or image, you can request an exchange.

Wrong or Damaged Products

Explanation: We ensure product quality and accurate shipping.
Policy: If you receive an incorrect product or one that is damaged during shipment, you are eligible for a free exchange.

Complete Package Assurance

Explanation: Your order should arrive complete and in perfect form.
Policy: If any accessory, component, or part is missing from the package, we will ship the missing parts after confirmation.

Video Proof of the Items

Explanation: Helps verify the condition of the product upon delivery.
Policy:  An unboxing video is mandatory at the time of opening the package. The video must clearly show the sealed package being opened, the product, and all included components. This is required for any claims related to:

  • Missing items
  • Damaged products
  • Wrong deliveries

Without this video proof, we will not be able to process returns or exchanges.

No Warranty for Electronic Products

Explanation: Most electronic items are sold as-is and cannot be returned once used.
Policy: Electronic products are not covered under warranty. We recommend testing the item as soon as you receive it. Exchanges are only allowed if the product is damaged on arrival or incorrectly delivered.

Return Request Timing

Explanation: We operate within a strict return window.
Policy: All return/exchange requests must be submitted within 10 days (local orders) and 20 days (bulk orders) from the invoice date.

Online Return Requests Only

Explanation: Streamlined and trackable process.
Policy: All return and exchange requests must be raised through our official website.

Proof of Purchase Required

Explanation: Ensures authenticity of your claim.
Policy: A copy of your invoice or order confirmation is required for any return, exchange, or or claim.

Order Cancellation Policy

Policy: Only those orders that are still in processing or have not yet been shipped are eligible for cancellation.

Explanation: Once an order has been shipped, it cannot be canceled under any circumstances. If your order is still in the processing stage or has not yet been dispatched, you may request a cancellation.

  2 - 5 DAY DELIVERY  Jun 19 Jun 23
Share:
Guaranteed safe & secure checkout

TECHNICAL DOCUMENTATION FILES

DOWNLOAD
  • Download All
  • DataSheet
  • Miscellaneous Files
Description
Additional information
Reviews (0)

Description

The SST25VF080B devices are enhanced with improved operating frequency for lower power consumption. SST25VF080B SPI serial flash memories are manufactured with SST’s proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches.

Features

  • Single Voltage Read and Write Operations– 2.7-3.6V
  • Supports 50 MHz SPI clock (80 MHz no longer available see EOL NOTIFICATION)
  • Endurance: 100,000 Cycles (typical)
  • Greater than 100 years Data Retention
  • Program & Erase Current: 30mA (max)
  • Active Read Current: 10 mA (typical)
  • Standby Current: 5 µA (typical)
  • Uniform 4 KByte sectors
  • Uniform 32 KByte & 64 KByte overlay blocks
  • Chip-Erase Time: 35 ms (typical)
  • Sector-/Block-Erase Time: 18 ms (typical)
  • Byte-Program Time: 7 µs (typical)
  • Decrease total chip programming time over Byte-Program operations
  • Software polling the BUSY bit in Status Register
  • Busy Status readout on SO pin in AAI Mode
  • Suspends a serial sequence to the memory without deselecting the device
  • Enables/Disables the Lock-Down function of the status register
  • Write protection through Block-Protection bits in the status register
  • Commercial: 0°C to +70°C
  • Industrial: -40°C to +85°C
  • Packages Available– 8-lead SOIC (200 mils)– 8-contact WSON (6mm x 5mm)– 8-lead PDIP (300 mils)– 8-bump CSP
  • All devices are RoHS compliant

Parametrics

  • Density (Organization): 8 Mbit
  • Operating Voltage Min. (V):2.7
  • Oper Voltage Max (V): 3.6
  • Max. Clock Freq: 50 MHz
  • Page Size (bytes): 0
  • Write Protected: False

Package Includes

  • 1 x NOR Flash 8M (1Mx8) 50MHz Commercial Temp
Weight 1 g
Origin

China
