SIMO Series Linear Rail Actuator – UGT Tall Rail with Lead Screw Drive (Used)
1 in stock
Delivery & Return Rules
Same-Day Delivery for ISB/RWP
Policy: Orders placed before 3:00 PM for delivery within Islamabad/Rawalpindi will be delivered the same day. Orders placed after this time will be delivered the next business day.
Quick Returns
Explanation: We aim for a smooth return experience.
Policy: Returned items will be processed within 3–5 business days of receiving the item, and you will be notified once the return is approved.
Exchange for Misquoted Items
Explanation: We take full responsibility for product listing accuracy.
Policy: If the item you received is significantly different from its description or image, you can request an exchange.
Wrong or Damaged Products
Explanation: We ensure product quality and accurate shipping.
Policy: If you receive an incorrect product or one that is damaged during shipment, you are eligible for a free exchange.
Complete Package Assurance
Explanation: Your order should arrive complete and in perfect form.
Policy: If any accessory, component, or part is missing from the package, we will ship the missing parts after confirmation.
Video Proof of the Items
Explanation: Helps verify the condition of the product upon delivery.
Policy: An unboxing video is mandatory at the time of opening the package. The video must clearly show the sealed package being opened, the product, and all included components. This is required for any claims related to:
- Missing items
- Damaged products
- Wrong deliveries
Without this video proof, we will not be able to process returns or exchanges.
No Warranty for Electronic Products
Explanation: Most electronic items are sold as-is and cannot be returned once used.
Policy: Electronic products are not covered under warranty. We recommend testing the item as soon as you receive it. Exchanges are only allowed if the product is damaged on arrival or incorrectly delivered.
Return Request Timing
Explanation: We operate within a strict return window.
Policy: All return/exchange requests must be submitted within 10 days (local orders) and 20 days (bulk orders) from the invoice date.
Online Return Requests Only
Explanation: Streamlined and trackable process.
Policy: All return and exchange requests must be raised through our official website.
Proof of Purchase Required
Explanation: Ensures authenticity of your claim.
Policy: A copy of your invoice or order confirmation is required for any return, exchange, or or claim.
Order Cancellation Policy
Policy: Only those orders that are still in processing or have not yet been shipped are eligible for cancellation.
Explanation: Once an order has been shipped, it cannot be canceled under any circumstances. If your order is still in the processing stage or has not yet been dispatched, you may request a cancellation.
TECHNICAL DOCUMENTATION FILES
Description

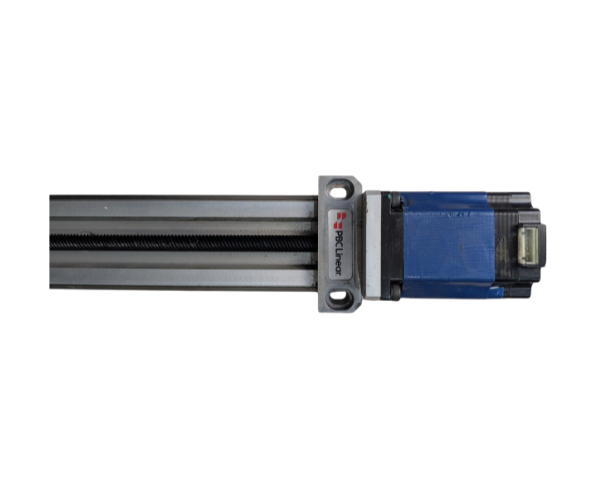

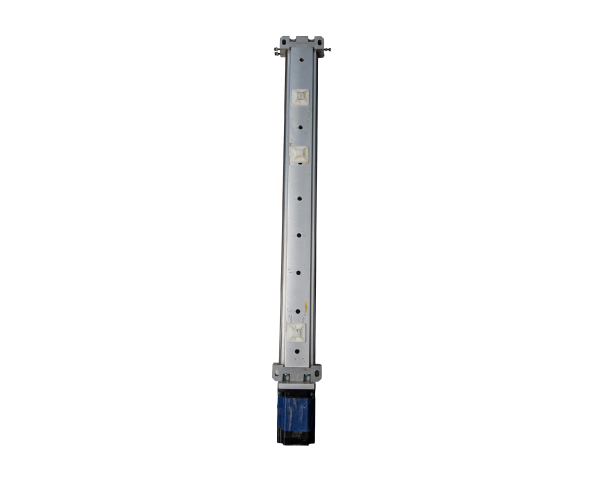

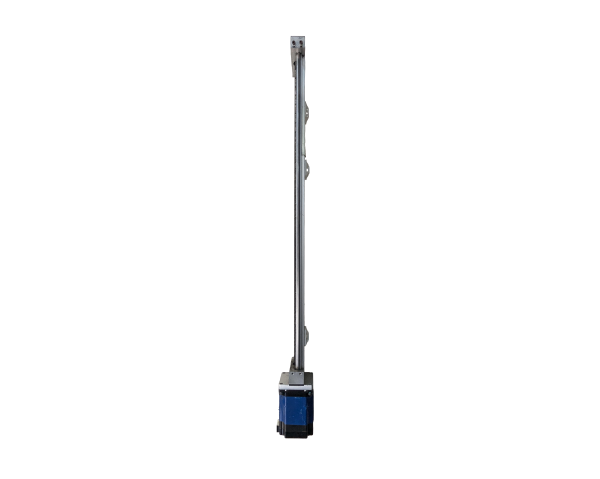

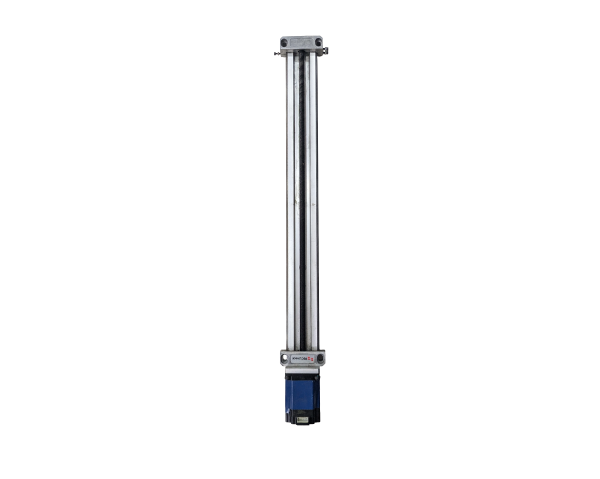

The UGA040D-B21-0520-LS3B6-AF11-0 is a precision-engineered, low-profile linear actuating assembly featuring PBC Linear’s Uni-Guide and CRT technologies. It combines compact design with rugged performance, ideal for applications demanding precise motion in confined spaces.
-
-
Compact and Space-Saving
Crafted in a low-profile form factor, this linear guide enables integration into tight spatial environments without sacrificing performance. -
Cam Roller (CRT) Carriage with Lubrication
The carriage incorporates cam roller technology enhanced with a lubrication option, delivering smooth, consistent motion and reduced wear. -
Lead Screw Drive with Integrated Motor
Powered via a lead screw (16 mm pitch) paired with a PBC-integrated motor screw mechanism and enhanced by a 56 mm NEMA-23 triple-stack motor, the system offers robust, backlash-minimized actuation. -
Single Master Carriage, Precisely Positioned
A single, standard master carriage is positioned first from the drive end, ensuring optimized load handling and motion control. -
Customization
Customized to a length of 520 mm, the rail includes a centered mounting hole pattern with a 20 mm first-hole offset, simplifying accurate and repeatable installation. -
Standard Nut Configuration
Utilizes a standard lead screw nut, delivering reliable actuation performance and ease of replacement or maintenance.
-
The carriage assembly, riding on either plain bearings (GST) or V-guide bearings (CRT), glides with minimal friction, allowing for high repeatability and excellent load handling. This design supports vertical or horizontal orientations, making it ideal for applications such as:
-
CNC automation
-
Lab automation
-
Pick-and-place robotics
-
3D printing
-
Linear dispensing and scanning equipment
Specification
| Attribute | Details |
|---|---|
| Part Number | UGA040D-B21-0520-LS3B6-AF11-0 |
| Rail Type | Low Profile |
| Carriage Type/Drive | CRT (Cam Roller Technology) – Lube option |
| Number of Carriages | 1 (Standard) |
| Master Carriage Position | 1st from Drive End |
| Drive Type | Lead Screw |
| Lead | 16 mm (AF11 designation) |
| Drive Option | PBC Integrated Motor Screw |
| Motor Option | 56 mm (N23) Triple Stack |
| Nut Type | Standard Nut |
| Rail Length | 520 mm |
| Center Mounting Hole Pattern | Yes |
| First Hole Offset (Centered) | 20.0 mm |
| Preferred CAD Format | SolidWorks ≥ 2006 |
| Dimensions | 520 × 50 mm |
|---|---|
| Origin | United States |
| Condition | 10/10 |
