Product Description

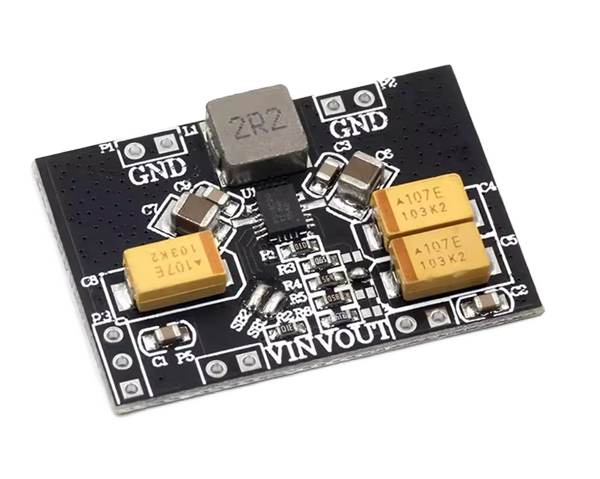

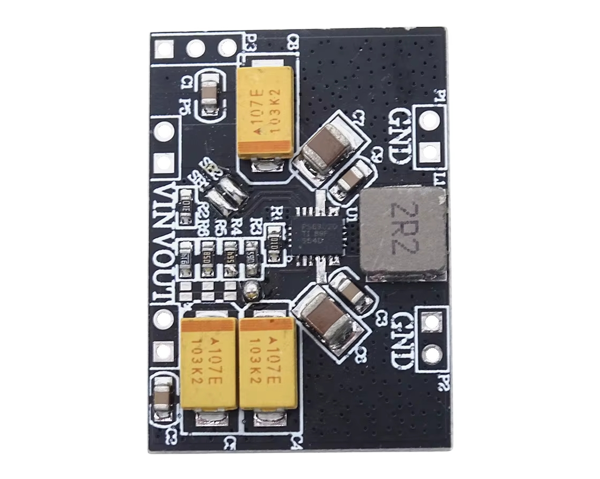

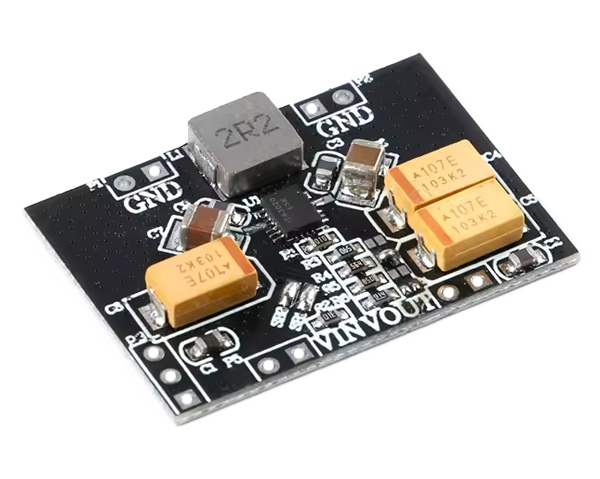

The TPS63020 Buck-Boost Converter is a high-performance power management IC designed for systems that require a stable output voltage, even when the input voltage fluctuates above or below the desired level. At Burk.pk, we offer this efficient converter for advanced electronic applications including battery-powered devices, portable instruments, and IoT systems.
This converter operates over a wide input range of 2.5V to 5.5V, and it can deliver a fixed or adjustable output, typically 3.3V. Whether the battery voltage is above or below this level, the TPS63020 ensures a constant output thanks to its seamless transition between buck and boost modes.
Capable of supplying up to 4A switch current, the TPS63020 Buck-Boost Converter is ideal for high-performance embedded designs. Moreover, it features high efficiency (up to 96%), which helps extend battery life and reduce heat in compact enclosures.
In addition, it supports Power Save Mode for improved efficiency at light loads, and Forced PWM Mode for low-noise applications. This makes it suitable for audio systems, wireless devices, and MCU-based projects.
The converter comes in a compact QFN-16 package, perfect for space-constrained boards. It also integrates safety features like soft-start, thermal shutdown, and overcurrent protection, ensuring long-term reliability.
Applications include sensor nodes, wearables, medical electronics, and smart meters. Wherever clean and stable voltage is needed across varying input conditions, this IC performs with precision.
To summarize, the TPS63020 Buck-Boost Converter is a smart, compact, and powerful voltage regulator. Get it now from Burk.pk and power your next-generation electronics efficiently and reliably.
Features:
TPS63020 is a highly efficient small buck boost power supply module.
The input ranges from 1.8V to 5.5V, the output current can be up to 3A and the efficiency is up to 96%.
It can automatically switch between buck boost modes.
The current is less than 50uA and the fixed operating frequency is 2.4MHz, can be used for all two and three cell batteries, single cell lithium battery powered devices, ultrasmall mobile PCs and MIDs, digital media DSCsand cameras.
This small module has remarkable efficiency, maximizes power conversion and minimizes energy loss. With automatic switching, it adapts effortlessly to different performance requirements.
Technical Data:
Input 1.8V-5V (recommended input 2V).
lass=”yoast-text-mark” />>Output: 2.5V/3.3V/4.2V/5V
Output formula: R3 = R1 Vout 1) Typical value 500mV (2.5V: R1=82K, R3=330K; 3.3V: R1=180K,
R3=1m; 4.2V: R1=3K, 5V: R1=110K, R3=1M).
>Output current: within 3A
Conversion efficiency: 96% (the smaller the input and output pressure difference, the higher the efficiency)
Static Power Consumption: 6mA 50uA (Power Saving Mode)
<span style=”color: #000000;”>Switching frequency: 2.4 MHz.
>Output power: 10mV (no load), 10mV with 0.5A, 30mV with 0.5A
Size: approx. 34mm x 24mm
Package Includes
- 1 x TPS63020 Automatic Buck Boost Converter
| Weight | 3 g |
|---|---|
| Origin | China |
