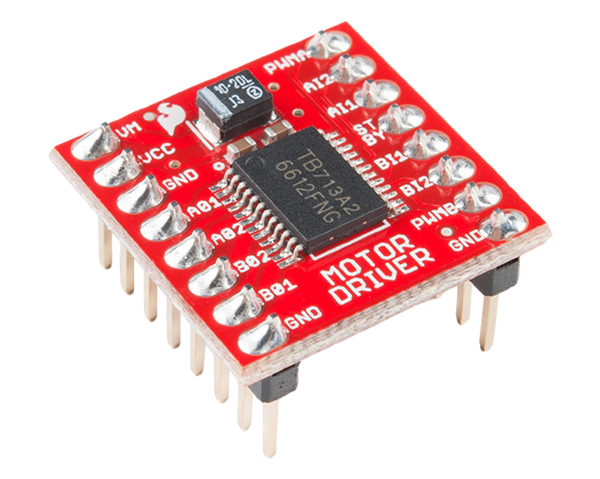

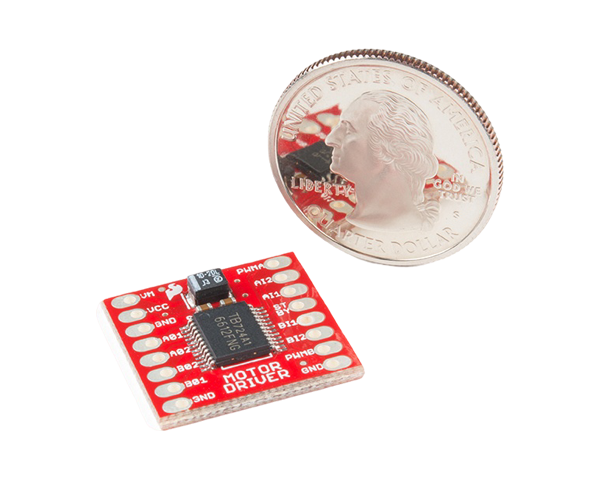

SparkFun Motor Controller/Driver TB6612FNG
3 in stock (can be backordered)
Delivery & Return Rules
Same-Day Delivery for ISB/RWP
Policy: Orders placed before 3:00 PM for delivery within Islamabad/Rawalpindi will be delivered the same day. Orders placed after this time will be delivered the next business day.
Quick Returns
Explanation: We aim for a smooth return experience.
Policy: Returned items will be processed within 3–5 business days of receiving the item, and you will be notified once the return is approved.
Exchange for Misquoted Items
Explanation: We take full responsibility for product listing accuracy.
Policy: If the item you received is significantly different from its description or image, you can request an exchange.
Wrong or Damaged Products
Explanation: We ensure product quality and accurate shipping.
Policy: If you receive an incorrect product or one that is damaged during shipment, you are eligible for a free exchange.
Complete Package Assurance
Explanation: Your order should arrive complete and in perfect form.
Policy: If any accessory, component, or part is missing from the package, we will ship the missing parts after confirmation.
Video Proof of the Items
Explanation: Helps verify the condition of the product upon delivery.
Policy: An unboxing video is mandatory at the time of opening the package. The video must clearly show the sealed package being opened, the product, and all included components. This is required for any claims related to:
- Missing items
- Damaged products
- Wrong deliveries
Without this video proof, we will not be able to process returns or exchanges.
No Warranty for Electronic Products
Explanation: Most electronic items are sold as-is and cannot be returned once used.
Policy: Electronic products are not covered under warranty. We recommend testing the item as soon as you receive it. Exchanges are only allowed if the product is damaged on arrival or incorrectly delivered.
Return Request Timing
Explanation: We operate within a strict return window.
Policy: All return/exchange requests must be submitted within 10 days (local orders) and 20 days (bulk orders) from the invoice date.
Online Return Requests Only
Explanation: Streamlined and trackable process.
Policy: All return and exchange requests must be raised through our official website.
Proof of Purchase Required
Explanation: Ensures authenticity of your claim.
Policy: A copy of your invoice or order confirmation is required for any return, exchange, or or claim.
TECHNICAL DOCUMENTATION FILES
Description
The TB6612FNG motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes – CW, CCW, short-brake, and stop. The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.
Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC. The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse).
Features
- Power supply voltage: VM=15V max, VCC=2.7-5.5V
- Output current: Iout=1.2A(average) / 3.2A (peak)
- Standby control to save power
- CW/CCW/short brake/stop motor control modes
- Built-in thermal shutdown circuit and low voltage detecting circuit

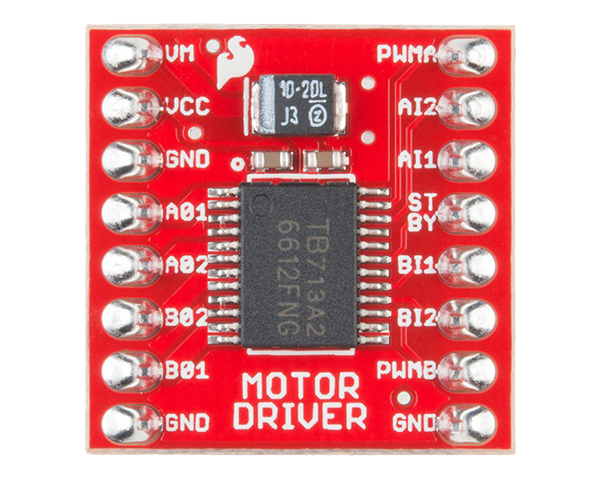

- All pins of the TB6612FNG broken out to 0.1″ spaced pins
- Filtering capacitors on both supply lines
Specifications
- Power supply voltage: VM = 15V max, VCC = 2.7–5.5V
- Output current: Iout = 1.2A (average) / 3.2A (peak)
- Standby control to save power
- CW/CCW/short-brake/stop motor control modes
- Built-in thermal shutdown circuit and low-voltage detecting circuit
- All pins of the TB6612FNG broken out to 0.1″ spaced pins
- Filtering capacitors on both supply lines
Package Includes
- 1 x Motor Controller/Driver TB6612FNG
| Weight | 3 g |
|---|---|
| Manufacturer | SparkFun Electronics |
| Product number | 1568-1756-ND |
